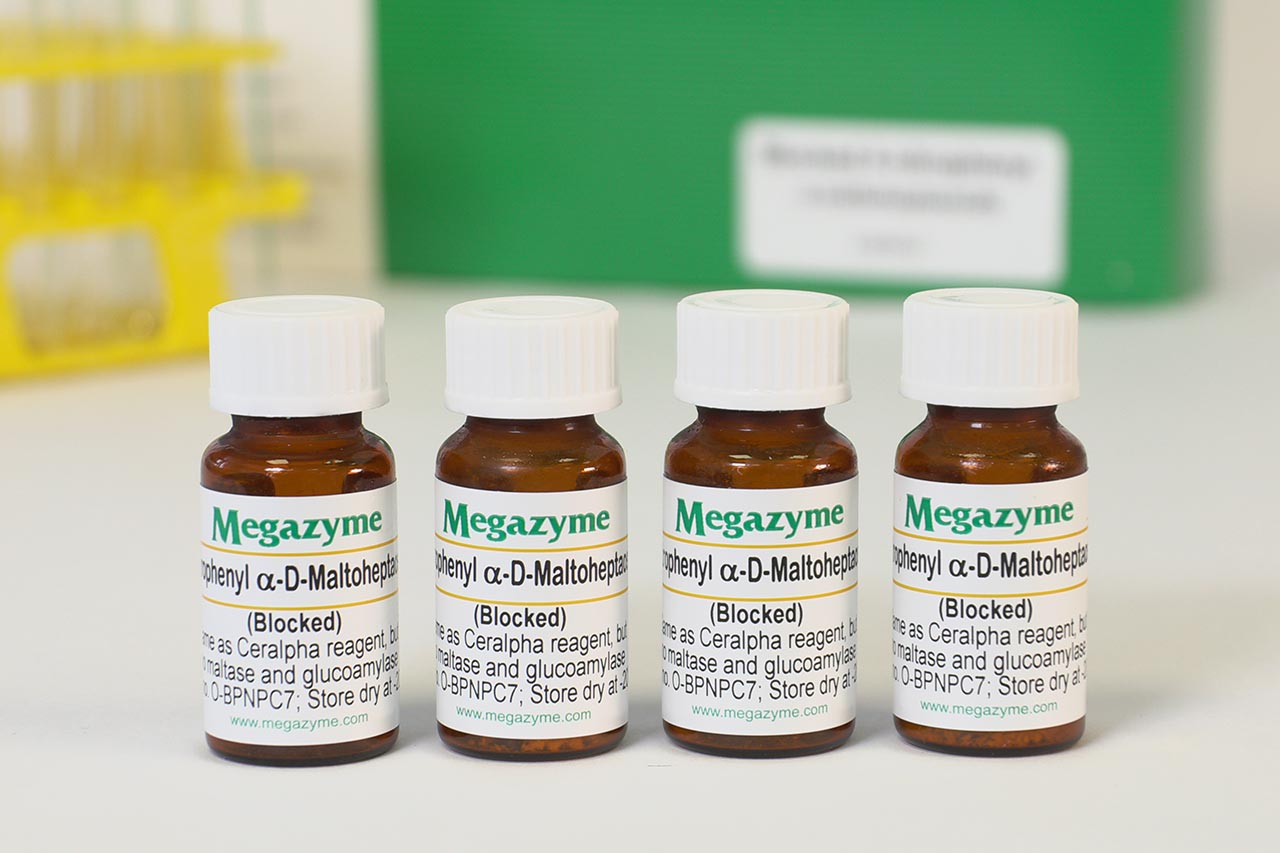

Blocked 4-nitrophenyl-α-maltoheptaoside

Product code: O-BPNPC7

4 Vials

Prices exclude VAT

Available for shipping

Content: 4 vials
Shipping Temperature: Ambient
Storage Temperature: Below -10oC
Physical Form: Solid
Stability: > 10 years under recommended storage conditions
CAS Number: 109055-07-4
Molecular Formula: C55H79NO38
Molecular Weight: 1,362.2
Purity: ~ 98%
Substrate For (Enzyme): α-amylase
Assay Format: Spectrophotometer, Microplate, Auto-analyser
Detection Method: Absorbance
Wavelength (nm): 400-420

High purity Blocked 4-nitrophenyl-α-maltoheptaoside for use in research, biochemical enzyme assays and in vitro diagnostic analysis.

One vial contains the same quantity of Blocked 4-nitrophenyl-α-D-maltoheptaoside as in one vial of "cereal α-amylase assay reagent" (i.e. 54.5 mg/vial). This can be used in a two-step format to assay α-amylases at pH and temperature values outside the range in which the standard reagent can be used. This preparation does not contain added enzymes.

Discover our full range of colourimetric oligosaccharides.

Certificate of Analysis
Safety Data Sheet
Megazyme publication

Versatile high resolution oligosaccharide microarrays for plant glycobiology and cell wall research.

Pedersen, H. L., Fangel, J. U., McCleary, B., Ruzanski, C., Rydahl, M. G., Ralet, M. C., Farkas, V., Von Schantz, L., Marcus, S. E., Andersen, M.C. F., Field, R., Ohlin, M., Knox, J. P., Clausen, M. H. & Willats, W. G. T. (2012). Journal of Biological Chemistry, 287(47), 39429-39438.

Microarrays are powerful tools for high throughput analysis, and hundreds or thousands of molecular interactions can be assessed simultaneously using very small amounts of analytes. Nucleotide microarrays are well established in plant research, but carbohydrate microarrays are much less established, and one reason for this is a lack of suitable glycans with which to populate arrays. Polysaccharide microarrays are relatively easy to produce because of the ease of immobilizing large polymers noncovalently onto a variety of microarray surfaces, but they lack analytical resolution because polysaccharides often contain multiple distinct carbohydrate substructures. Microarrays of defined oligosaccharides potentially overcome this problem but are harder to produce because oligosaccharides usually require coupling prior to immobilization. We have assembled a library of well characterized plant oligosaccharides produced either by partial hydrolysis from polysaccharides or by de novo chemical synthesis. Once coupled to protein, these neoglycoconjugates are versatile reagents that can be printed as microarrays onto a variety of slide types and membranes. We show that these microarrays are suitable for the high throughput characterization of the recognition capabilities of monoclonal antibodies, carbohydrate-binding modules, and other oligosaccharide-binding proteins of biological significance and also that they have potential for the characterization of carbohydrate-active enzymes.

Hide Abstract
Megazyme publication

Measurement of α-amylase activity in white wheat flour, milled malt, and microbial enzyme preparations, using the ceralpha assay: Collaborative study.

McCleary, B. V., McNally, M., Monaghan, D. & Mugford, D. C. (2002). Journal of AOAC International, 85(5), 1096-1102.

This study was conducted to evaluate the method performance of a rapid procedure for the measurement of α-amylase activity in flours and microbial enzyme preparations. Samples were milled (if necessary) to pass a 0.5 mm sieve and then extracted with a buffer/salt solution, and the extracts were clarified and diluted. Aliquots of diluted extract (containing α-amylase) were incubated with substrate mixture under defined conditions of pH, temperature, and time. The substrate used was nonreducing end-blocked p-nitrophenyl maltoheptaoside (BPNPG7) in the presence of excess quantities of thermostable α-glucosidase. The blocking group in BPNPG7 prevents hydrolysis of this substrate by exo-acting enzymes such as amyloglucosidase, α-glucosidase, and β-amylase. When the substrate is cleaved by endo-acting α-amylase, the nitrophenyl oligosaccharide is immediately and completely hydrolyzed to p-nitrophenol and free glucose by the excess quantities of α-glucosidase present in the substrate mixture. The reaction is terminated, and the phenolate color developed by the addition of an alkaline solution is measured at 400 nm. Amylase activity is expressed in terms of Ceralpha units; 1 unit is defined as the amount of enzyme required to release 1 µmol p-nitrophenyl (in the presence of excess quantities of α-glucosidase) in 1 min at 40°C. In the present study, 15 laboratories analyzed 16 samples as blind duplicates. The analyzed samples were white wheat flour, white wheat flour to which fungal α-amylase had been added, milled malt, and fungal and bacterial enzyme preparations. Repeatability relative standard deviations ranged from 1.4 to 14.4%, and reproducibility relative standard deviations ranged from 5.0 to 16.7%.

Hide Abstract
Characterization of cyclodextrin glycosyltransferases (CGTases) and their application for synthesis of alkyl glycosides with oligomeric head group.

Rather, M. Y., Ara, K. Z. G., Karlsson, E. N. & Adlercreutz, P. (2015). Process Biochemistry, 50(5), 722-728.

Cyclodextrin glycosyltransferases (CGTases) from Paenibacillus macerans, Thermoanaerobacter sp. ATCC 53627, Bacillus stearothermophilus and a Carboxydocella sp. (phylogenetically identified from genomic DNA) were characterized with respect to their catalytic activity in different reactions, with emphasis on reactions useful for the elongation of the carbohydrate group of alkyl glycosides. All CGTases had activities between 95 and 115 U/mg in the coupling reaction between α-cyclodextrin (α-CD) as glucosyl donor and β-dodecyl maltoside as glucosyl acceptor, but differed very much in the competing hydrolysis of α-CD. The α-CD hydrolysis activity ranged from 0.13 U/mg for P. macerans CGTase to 10.5 U/mg for the Carboxydocella sp. (CspCGT13). Furthermore, the disproportionation activity was much lower for the Paenibacillus CGTase compared to the other CGTases, and consequently this enzyme produced the highest yield of the primary coupling product β-dodecyl maltooctaoside, which is a valuable surfactant. For production of a polydisperse alkyl glycoside product, disproportionation reactions are useful and the other three CGTases of the current study are efficient catalysts. The newly discovered Carboxydocella sp. (CspCGT13) CGTase has the special feature to produce more of products with even longer carbohydrate groups than the primary coupling product.

Hide Abstract
Detection of wood cell wall porosity using small carbohydrate molecules and confocal fluorescence microscopy.

Donaldson, L. A., Kroese, H. W., Hill, S. J. & Franich, R. A. (2015). Journal of Microscopy, 259(3), 228-236.

A novel approach to nanoscale detection of cell wall porosity using confocal fluorescence microscopy is described. Infiltration of cell walls with a range of nitrophenyl-substituted carbohydrates of different molecular weights was assessed by measuring changes in the intensity of lignin fluorescence, in response to the quenching effect of the 4-nitrophenyl group. The following carbohydrates were used in order of increasing molecular weight; 4-nitrophenyl β-D-glucopyrano-side (monosaccharide), 4-nitrophenyl β-D-lactopyranoside (disaccharide), 2-chloro-4-nitrophenyl β-D-maltotrioside (trisaccharide), and 4-nitrophenyl α-D-maltopentaoside (pentasaccharide). This technique was used to compare cell wall porosity in wood which had been dewatered to 40% moisture content using supercritical CO2, where cell walls remain fully hydrated, with kiln dried wood equilibrated to 12% moisture content. Infiltration of cell walls as measured by fluorescence quenching, was found to decrease with increasing molecular weight, with the pentasaccharide being significantly excluded compared to the monosaccharide. Porosity experiments were performed on blocks and sections to assess differences in cell wall accessibility. Dewatered and kiln dried wood infiltrated as blocks showed similar results, but greater infiltration was achieved by using sections, indicating that not all pores were easily accessible by infiltration from the lumen surface. In wood blocks infiltrated with 4-nitrophenyl α-D-maltopentaoside, quenching of the secondary wall was quite variable, especially in kiln dried wood, indicating limited connectivity of pores accessible from the lumen surface.

Hide Abstract
Safety Information
Symbol : Not Applicable
Signal Word : Not Applicable
Hazard Statements : Not Applicable
Precautionary Statements : Not Applicable
Safety Data Sheet
